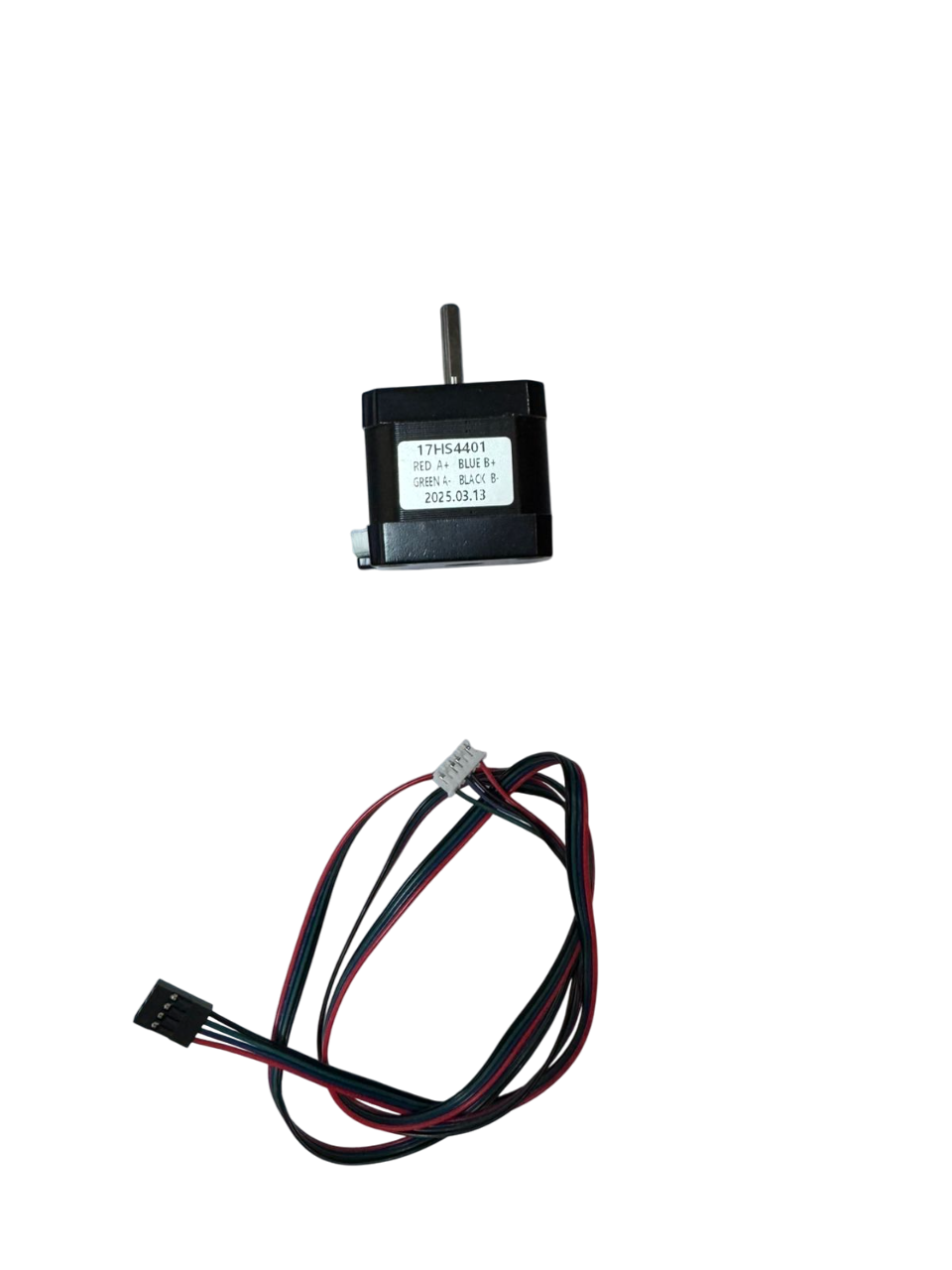

17HS4401 NEMA 17 Moteur Pas A Pas
![17HS4401 NEMA 17 Moteur Pas A Pas]()
![17HS4401 NEMA 17 Moteur Pas A Pas]()
-23%
17HS4401 NEMA 17 Moteur Pas A Pas
Disponible:En stock
- Référence du produit : 17HS4401 NEMA 17
- Catégorie:Accessoires CNC,Moteurs pas à pas,promotion
37.500
49.000
- Commandez dans
17HS4401 Stepper Motor Specifications:
| Parameter | Description |
|---|---|
| Motor Type | Bipolar Stepper Motor |
| Model Number | 17HS4401 |
| Step Angle | 1.8° (200 steps/rev) |
| Rated Current | 1.7 A/phase |
| Voltage | ~2.8 V (derived from resistance × current) |
| Resistance | ~1.65 Ohm/phase |
| Holding Torque | ~40 N·cm (0.4 N·m or ~56.5 oz-in) |
| Shaft Diameter | 5 mm |
| Shaft Length | ~20–24 mm (varies slightly by supplier) |
| Lead Wires | 4 wires (typically for bipolar connection) |
| Weight | ~280 grams |
| Length (Body) | 40 mm |
17HS4401 Stepper Motor Specifications:
| Parameter | Description |
|---|---|
| Motor Type | Bipolar Stepper Motor |
| Model Number | 17HS4401 |
| Step Angle | 1.8° (200 steps/rev) |
| Rated Current | 1.7 A/phase |
| Voltage | ~2.8 V (derived from resistance × current) |
| Resistance | ~1.65 Ohm/phase |
| Holding Torque | ~40 N·cm (0.4 N·m or ~56.5 oz-in) |
| Shaft Diameter | 5 mm |
| Shaft Length | ~20–24 mm (varies slightly by supplier) |
| Lead Wires | 4 wires (typically for bipolar connection) |
| Weight | ~280 grams |
| Length (Body) | 40 mm |
